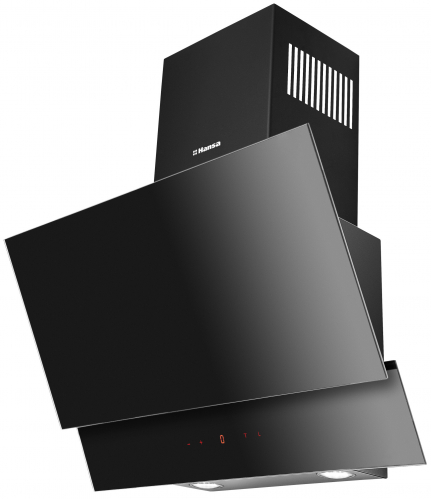

1161065 OKC6641SH

  • Carbon filter

    Carbon filter

    Clean and efficient air extraction through integrated carbon filters.
    (* carbon filter sold separately)

  • LED display

    LED display

    It takes just a glance at the control display to check the hood setting, including the fan speed level and the remaining time left to run. Most models do not even require us to check when the filters need cleaning or changing - the filter indicators simply tell us when.

  • LED lighting

    LED lighting

    Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Hansa hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Hansa hood, and enjoy the best solutions!

  • Remote control

    Remote control

    Too much effort to stop what we’re doing, just to get up to turn the hood off? Use the remote control! The remote control can turn the hood on and off, set the fan power, and even dim the lights to add some special ambiance to the meal. It’s just so convenient!

  • Sensor control system

    Sensor control system

    Forget about cleaning the dirt which gathers around the buttons! The Hansa hoods feature touch panels located under a glass cover. With this, you can quickly and easily clean the panel, as well as have easy access to all hood functions. See how addictive can convenience be!

i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

OKC6641SH

OKC6641SH

  • Carbon filter

    Carbon filter

  • LED display

    LED display

  • LED lighting

    LED lighting

  • Remote control

    Remote control

  • Sensor control system

    Sensor control system

1161065

  • FEATURES

    • Accessories Remote control
    • Air flaps Yes
    • Delay Yes
    • FrameOn Yes
    • Maximum time of delay 90 '
    • Panel - language version Pictograms
    • Protection class of electric shock I_Class
    • Type of work Extraction/Recirculation

  • Equipment

    • Number of carbon filters 1
    • Number of grease filters 1
    • Number of layers in grease filter 3
    • Number of speed 4
    • Remote included Yes
    • Type of control Sensor
    • Type of display LED
    • Type of grease filters Aluminium frame
    • Carbon filter type FWK 250

  • Technical data

    • Frequency 50
    • Air flow at 1 speed - extractor by EN 61591 211 m3/h
    • Air flow at 2 speed - extractor by EN 61591 276 m3/h
    • Air flow at 3 speed - extractor by EN 61591 366 m3/h
    • Air flow at 4 speed - extractor by EN 61591 622 m3/h
    • Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 622 m3/h
    • Air Flow at Minimum Speed in Normal Use 211 m3/h
    • Air Flow Rate at Best Efficiency Point - Q BEP 322.7 m3/h
    • Air Pressure at Best Efficiency Point P BEP 405 Pa
    • Annual energy consumption 65.7 kWh
    • Average Illumination of the Lighting System on the Cooking Surface - E middle 371 lux
    • Control panel on one side/two sides One side
    • Country of Origin on Rating Label Made in EU
    • Dimensions of grease filter 222.5x250x9
    • Display color Red
    • Distance from light cover to wall 10 mm
    • Distance to electric hob 450 mm
    • Distance to gas hob 650 mm
    • Electric Power Input at Best Efficiency Point - W BEP 147.7 W
    • Fluid Dynamic Efficiency - FDE hood 24.6
    • Fluid Dynamic Efficiency Class B
    • Grease Filtering Efficiency - GFE hood 62.2 %
    • Grease Filtering Efficiency Class E
    • Internal/external motor Internal
    • Lighting Efficiency - LE hood 42.6 lux/W
    • Lighting Efficiency Class A
    • Lighting Efficiency Class A
    • Maximum Possible Air Flow 622 m3/h
    • Motor unit rated power 260 W
    • Motor type/model S-45 004 01
    • Net depth 375 mm
    • Net height max 970 mm
    • Net height min 780 mm
    • Net weight 9.72 kg
    • Net width 600 mm
    • Noise level at 1 speed - extractor by EN 60704-2-13 49 dB
    • Noise level at 2 speed - extractor by EN 60704-2-13 53 dB
    • Noise level at 3 speed - extractor by EN 60704-2-13 58 dB
    • Noise level at 4 speed - extractor by EN 60704-2-13 67 dB
    • Nominal Power of the Lighting System - W L 8.7 W
    • Number of motor units 1
    • Number units of main lighting 2
    • Air exhaust diameter 150 mm
    • Type of plug or cable Euro plug
    • Power Consumption in Standby Mode - Ps 0.25 W
    • Power cabel length 170 cm
    • Power rating 266 W
    • Power Supply Voltage 230V
    • Power unit of main lighting 3 W
    • Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 67 dB
    • Sound Power Emission at Minimum Speed Available in Normal Use 49 dB
    • Noise level 67 dB
    • Time Increase Factor - f 1.1
    • Type of main lighting LED
