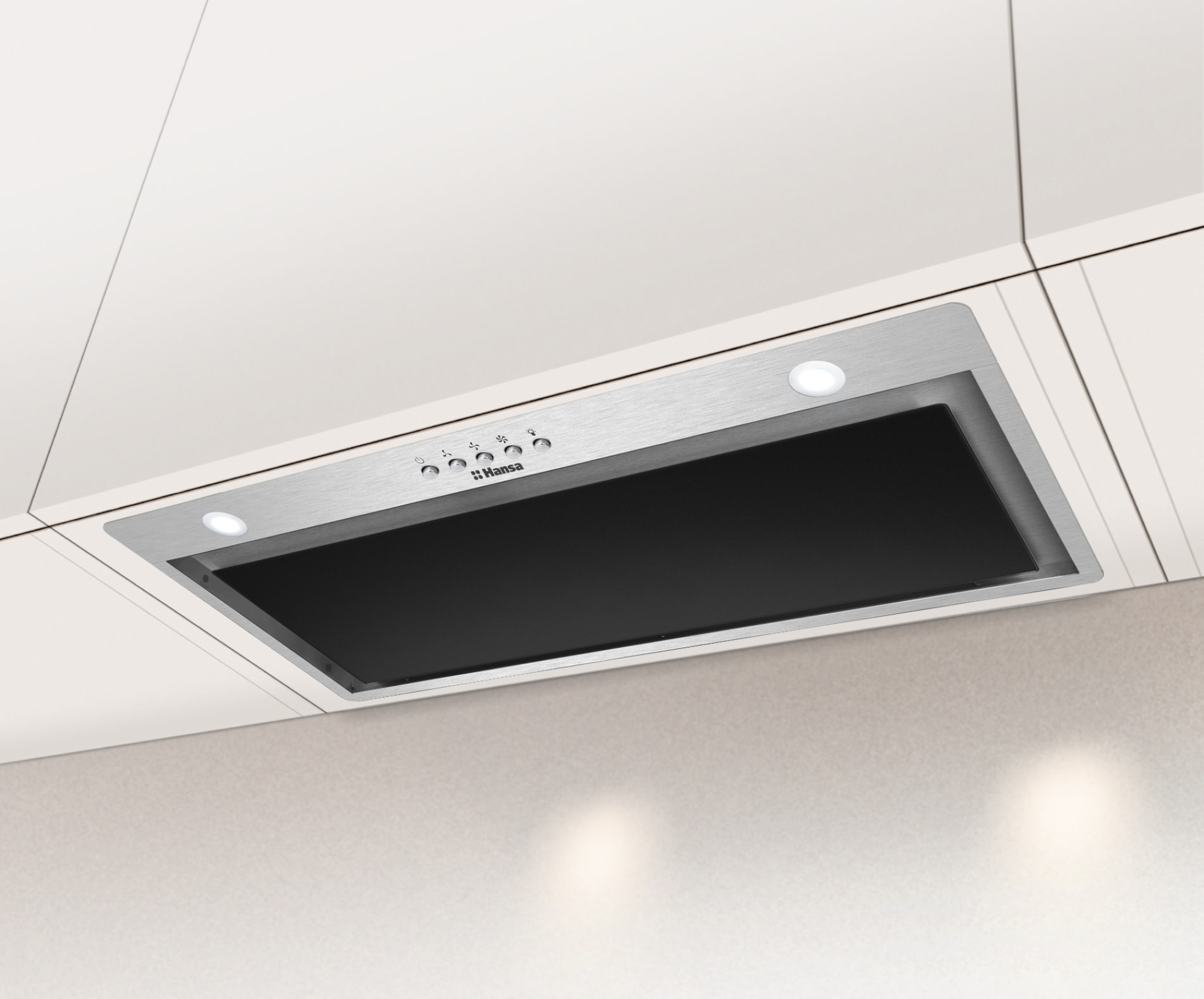

OMP6242BIH

• Carbon filter(s) included:
  No
• Number of carbon filters:
  2
• Number of grease filters:
  1

• Number of layers in grease filter:
  5
• Number of speed:
  3
• Type of control:
  Push buttons

• Type of grease filters:
  Aluminium frame
• Carbon filter type:
  FWP 18

• Frequency:
  50
• Air flow at 1 speed - extractor by EN 61591:
  347 m3/h
• Air flow at 2 speed - extractor by EN 61591:
  404 m3/h

• Air flow at 3 speed - extractor by EN 61591:
  445 m3/h
• Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  445 m3/h
• Air Flow at Minimum Speed in Normal Use:
  347 m3/h

• Air Flow Rate at Best Efficiency Point - Q BEP:
  244.8 m3/h
• Air Pressure at Best Efficiency Point P BEP:
  242.3 Pa
• Annual energy consumption:
  66.8 kWh

• Average Illumination of the Lighting System on the Cooking Surface - E middle:
  196 lux
• Container qty 40'HQ:
  775
• Control panel on one side/two sides:
  One side

• Country of Origin on Rating Label:
  Made in PRC
• Dimensions of grease filter:
  456 x 167 mm
• Display color:
  no

• Distance from light cover to wall:
  15 mm
• Distance to electric hob:
  450 mm
• Distance to gas hob:
  650 mm

• Electric Power Input at Best Efficiency Point - W BEP:
  116.7 W
• Fluid Dynamic Efficiency - FDE hood:
  14.1
• Fluid Dynamic Efficiency Class:
  D

• Grease Filtering Efficiency - GFE hood:
  76 %
• Grease Filtering Efficiency Class:
  C
• Internal/external motor:
  Internal

• Main lighting colour temperature [K]:
  6500
• Lighting Efficiency - LE hood:
  49 lux/W
• Lighting Efficiency Class:
  A

• Lighting Efficiency Class:
  A
• Maximum Possible Air Flow:
  445 m3/h
• Motor unit rated power:
  150 W

• Motor type/model:
  E series
• Net depth:
  277 mm
• Net height max:
  300 mm

• Net height min:
  300 mm
• Net weight:
  9 kg
• Net width:
  600 mm

• Noise level at 1 speed - extractor by EN 60704-2-13:
  59 dB
• Noise level at 2 speed - extractor by EN 60704-2-13:
  61 dB
• Noise level at 3 speed - extractor by EN 60704-2-13:
  63 dB

• Nominal Power of the Lighting System - W L:
  4 W
• Number of motor units:
  1
• Number units of main lighting:
  2

• Air exhaust diameter:
  150 mm
• Type of plug or cable:
  Euro plug
• Power cabel length:
  120 cm

• Power rating:
  154 W
• Power Supply Voltage:
  230V
• Power unit of main lighting :
  2 W

• Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  63 dB
• Sound Power Emission at Minimum Speed Available in Normal Use:
  59 dB
• Noise level:
  63 dB

• Time Increase Factor - f:
  1.5
• Type of main lighting:
  LED - other
• Type of main lighting:
  LED - other
