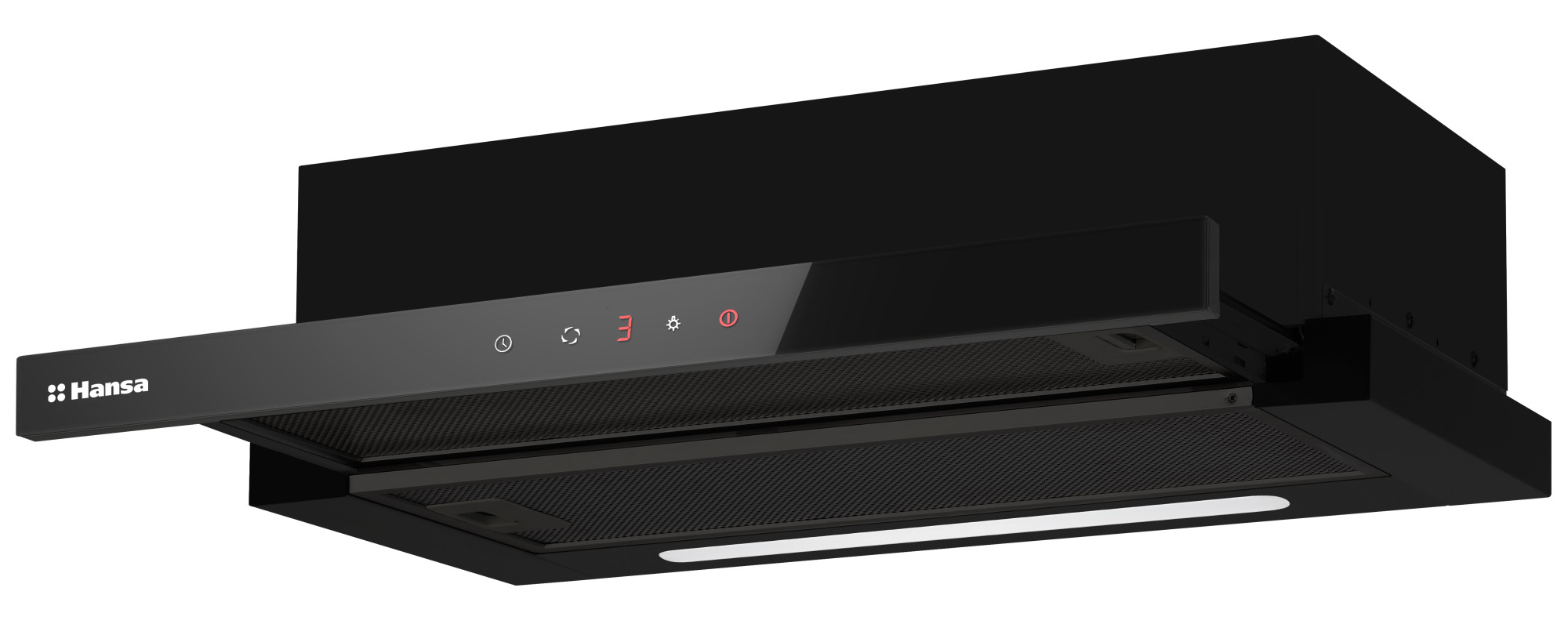

OTP66511BGH

• Number of carbon filters:
  2
• Number of grease filters:
  2
• Number of layers in grease filter:
  5

• Number of speed:
  3
• Type of control:
  Sensor
• Type of display:
  LCD

• Type of grease filters:
  Aluminium frame
• Carbon filter type:
  FWP 18

• Frequency:
  50
• Air flow at 1 speed - extractor by EN 61591:
  339 m3/h
• Air flow at 2 speed - extractor by EN 61591:
  420 m3/h

• Air flow at 3 speed - extractor by EN 61591:
  508 m3/h
• Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  508 m3/h
• Air Flow at Minimum Speed in Normal Use:
  339 m3/h

• Air Flow Rate at Best Efficiency Point - Q BEP:
  287 m3/h
• Air Pressure at Best Efficiency Point P BEP:
  294 Pa
• Annual energy consumption:
  49.7 kWh

• Average Illumination of the Lighting System on the Cooking Surface - E middle:
  131.2 lux
• Container qty 40'HQ:
  894
• Control panel on one side/two sides:
  One side

• Country of Origin on Rating Label:
  Made in PRC
• Dimensions of grease filter:
  476x130/477x205
• Display color:
  red

• Distance from light cover to wall:
  33 mm
• Distance to electric hob:
  450 mm
• Distance to gas hob:
  650 mm

• Electric Power Input at Best Efficiency Point - W BEP:
  106 W
• Fluid Dynamic Efficiency - FDE hood:
  22.1
• Fluid Dynamic Efficiency Class:
  C

• Grease Filtering Efficiency - GFE hood:
  78 %
• Grease Filtering Efficiency Class:
  C
• Internal/external motor:
  Internal

• Main lighting colour temperature [K]:
  6500
• Lighting Efficiency - LE hood:
  32.8 lux/W
• Lighting Efficiency Class:
  A

• Lighting Efficiency Class:
  A
• Maximum Possible Air Flow:
  508 m3/h
• Motor unit rated power:
  150 W

• Motor type/model:
  E series
• Net depth:
  300 mm
• Net height max:
  268 mm

• Net height min:
  268 mm
• Net weight:
  8.5 kg
• Net width:
  600 mm

• Noise level at 1 speed - extractor by EN 60704-2-13:
  57 dB
• Noise level at 2 speed - extractor by EN 60704-2-13:
  60 dB
• Noise level at 3 speed - extractor by EN 60704-2-13:
  63 dB

• Nominal Power of the Lighting System - W L:
  4.5 W
• Number of motor units:
  1
• Number units of main lighting:
  1

• Air exhaust diameter:
  150 mm
• Type of plug or cable:
  Euro plug
• Power Consumption in Standby Mode - Ps:
  0.65 W

• Power Consumption in Off Mode - Po:
  0.42 W
• Power cabel length:
  120 cm
• Power rating:
  154 W

• Power Supply Voltage:
  230V
• Power unit of main lighting :
  4 W
• Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  63 dB

• Sound Power Emission at Minimum Speed Available in Normal Use:
  57 dB
• Noise level:
  63 dB
• Time Increase Factor - f:
  1.2

• Type of main lighting:
  LED strip
• Type of main lighting:
  LED strip
